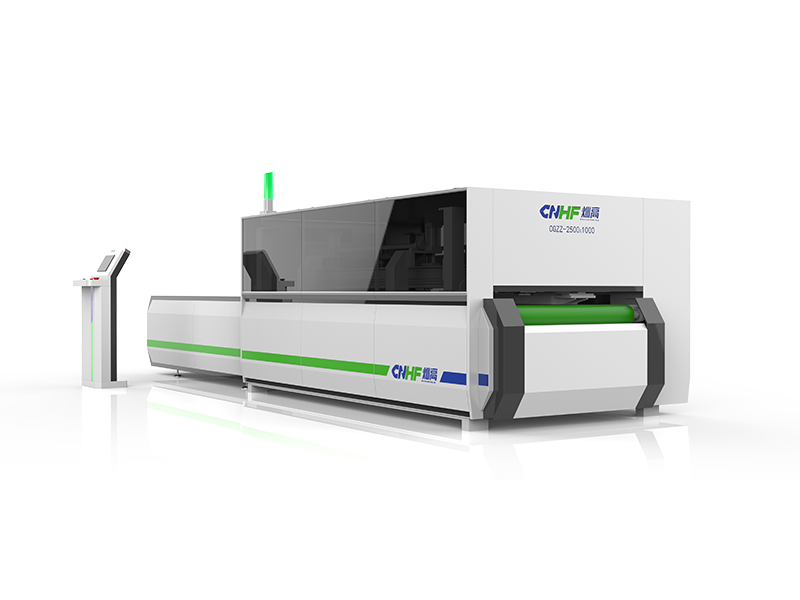

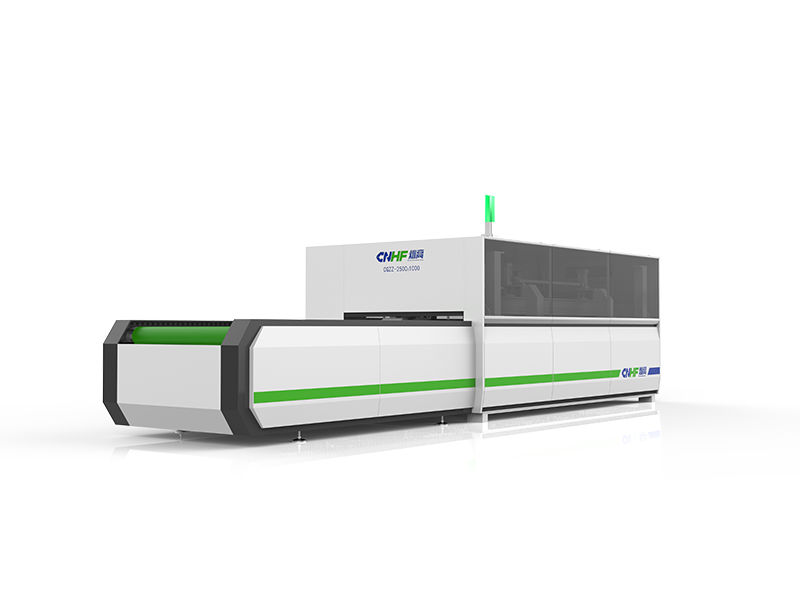

Intelligent perceotion high frequency framing machine
Category:
HF(RF) FRAME JOINING MACHINE SERIES
Keywords：
Share
- Detail
- Equipment parameters
-
Fast assembly of all categories
Suitable for the assembly of wooden doors, wardrobe doors, and proportional doors, especially for the batch assembly of multiple equaly wide cabinet doors. Minimalist operation, not only can you manually input and scan the code to inputdimensions, but also can automatically detect the size of the workpiece (automatically detect the size and middle position of the workpiece), achieving automatic and flexible assembly of the workpiece.
-
Product type
CGZZ-2500×700P
CGZZ-2500×1000P
CGZZ-2500×1000
Max.joining size(mm)
2500×700
2500×1000
2500×1000
Min.joining size (mm)
300×300
300×300
300×300
Pressuirizing mode
Servo motor
Size input method
Scan code setting
Numerical controlsetting
Overall dimension(mm)
6700(L)×2150(W)×2650(H)
Weight(t)
5
5
5
